一、用途
SRS型管状电加热元件，适用于敞开式、封闭式的水槽中和循环系统内加热水用。

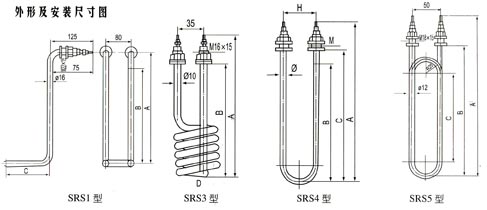

二、外形及安装尺寸图
三、规格及数据
型号 | 电压 V | 功率 kw | 外形及安装尺寸图 | |||
A | B低液面 | C | D | |||
SRS1-380/1 | 380 | 1 | 440 | 360 | 340 | - |
SRS1-380/2 | 2 | 480 | 400 | 380 | ||
SRS 1-380/3 | 3 | 580 | 500 | 480- | ||
SRS 1-380/4 | 4 | 675 | 575 | 490 | ||
SRS 1-380/5 | 5 | 775 | 675 | 540 | ||
SRS 1-380/6 | 6 | 870 | 770 | 560 | ||
SRS 1-380/7 | 7 | 875 | 755 | 660 | ||
SRS3220/0.5 | 220 | 0.5 | 145 | 100 | - | 60 |
SRS3-220/1 | 1 | 175 | 130 | |||
SRS3220/1.5 | 1.5 | 200 | 155 | |||
SRS3-220/2 | 2 | 250 | 205 | |||
SRS3220/2.5 | 2.5 | 120 | 75 | |||
SRS5-220/1 | 1 | 330 | 275 | - | ||
SRS5-220/2 | 2 | 480 | 425 | |||
SRS5-220/3 | 3 | 390 | 335 | 250 | ||
SRS5-220/4 | 4 | 515 | 460 | 375 | ||
SRS5-220/5 | 5 | 640 | 585 | 500 | ||
